18 PCS Keyway Broach Set HSS Keyway Cutting Tool for Lathe Metric Size Broaches with Bushings and Shims with Precision Ground Teeth

Keyway Broach 18pcs Metric Size Set B Type 4mm 5mm + C Type 6mm 8mm & 9pcs Bushing Sleeve 5pcs Shim

Specification:
Material: HSS Steel
Type: Metric Size Broach
4broaches & 9 Bushing Sleeve 5shims 18combinations
4 broaches B14B15C16C1-8
9 catheter: 12B,14B,16B,18C,20C,22C,24C,26C,28C
5 shims:

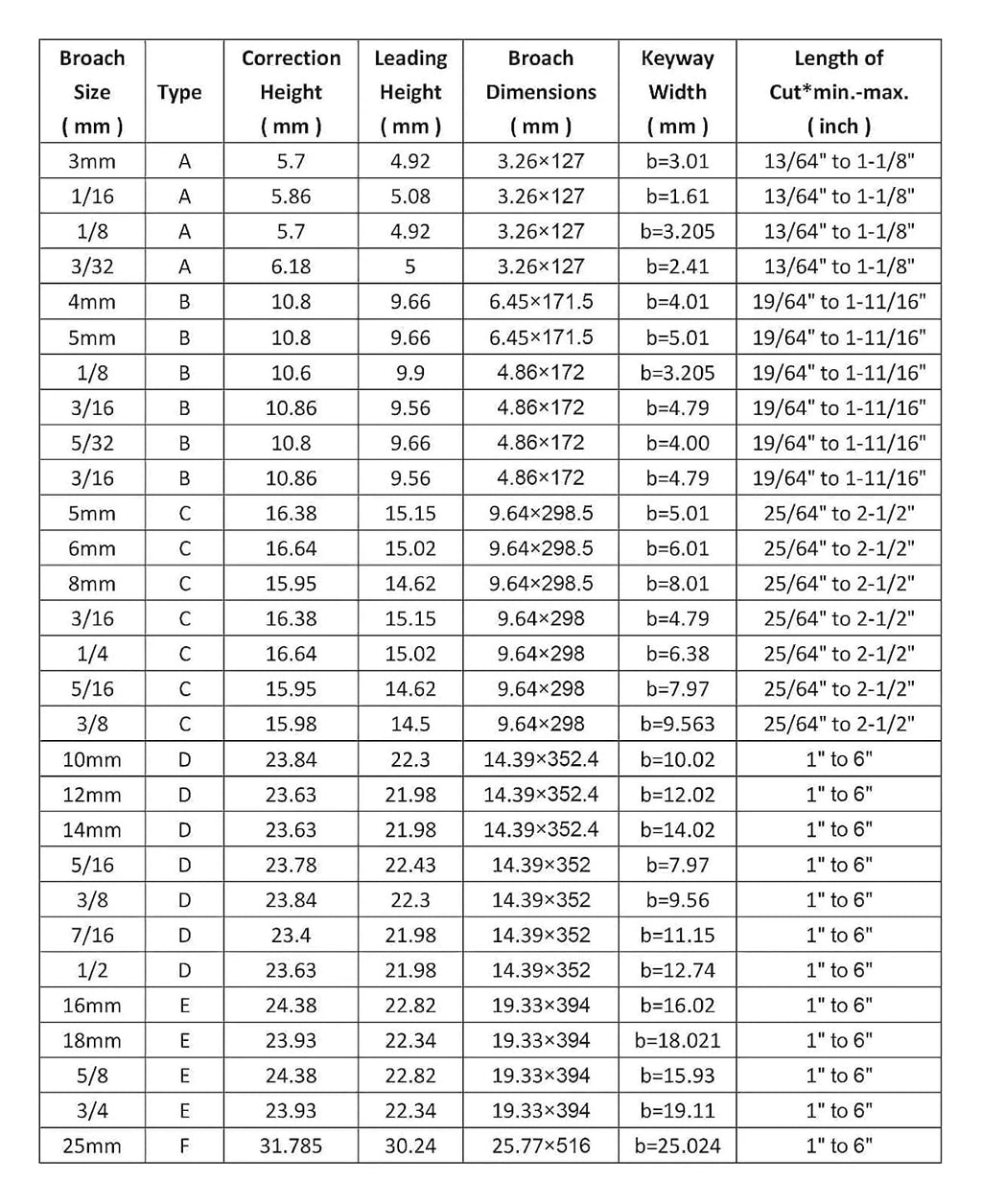

Brooches:
B1-4: height: 10.8 mm; Leading height:9.66 mm; Broach Dimensions*(mm):6.45X171.5; key groove width (mm): b=4.01 mm; Length of Cut * min.-max.19/64 - 1 11/16
B1-5: height: 10.8 mm; Leading height:9.66 mm; Broach Dimensions*(mm):6.45X171.5; key groove width (mm): b =5.01 mm; Length of Cut * min.-max.19/64 - 1 11/16
C1-6: height: 16.64 mm; Leading height:15.02 mm; Broach Dimensions*(mm):9.64X298.5; key groove width (mm): b=6.01 mm; Length of Cut * min.-max.25/64 - 2 1/2
C1-8: height: 15.95mm; Leading height:14.62 mm; Broach Dimensions*(mm):9.64X298.5; key groove width (mm): b =8.01 mm; Length of Cut * min.-max.25/64 - 2 1/2

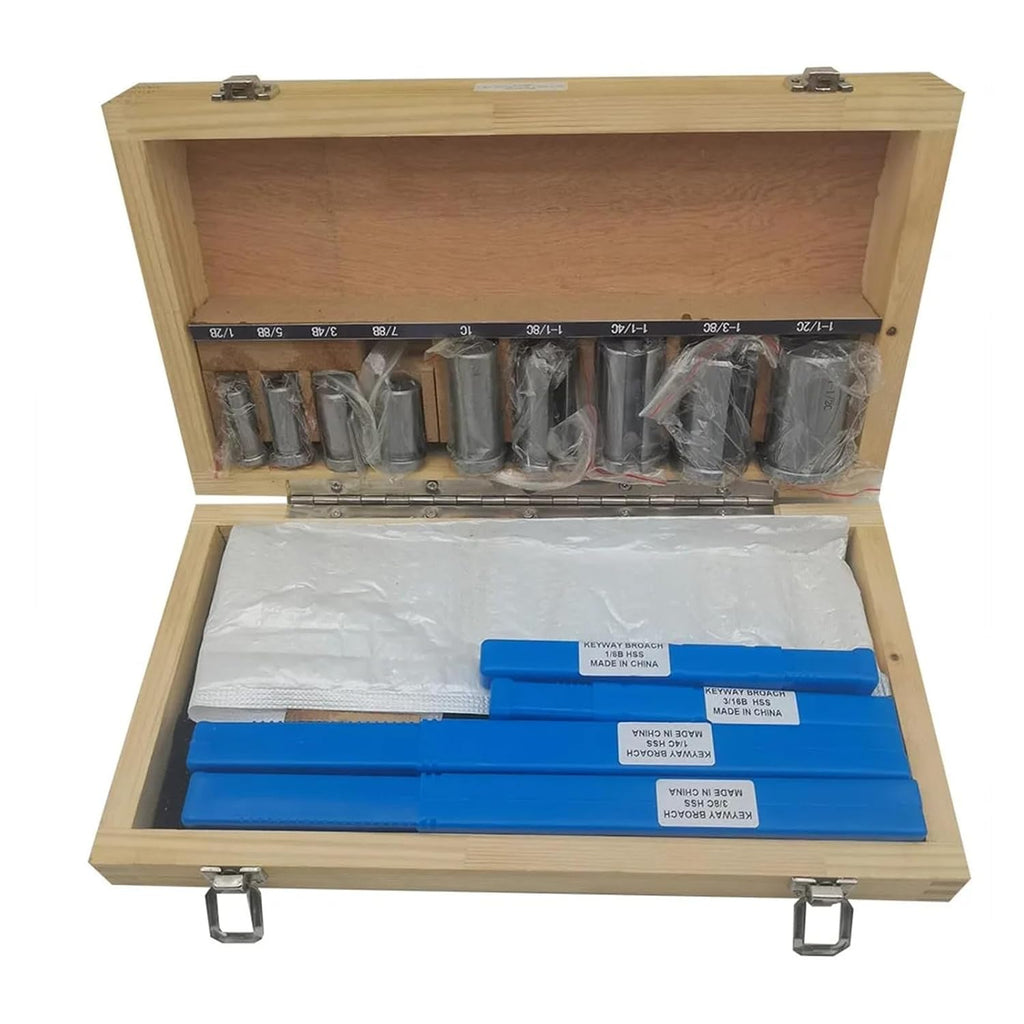

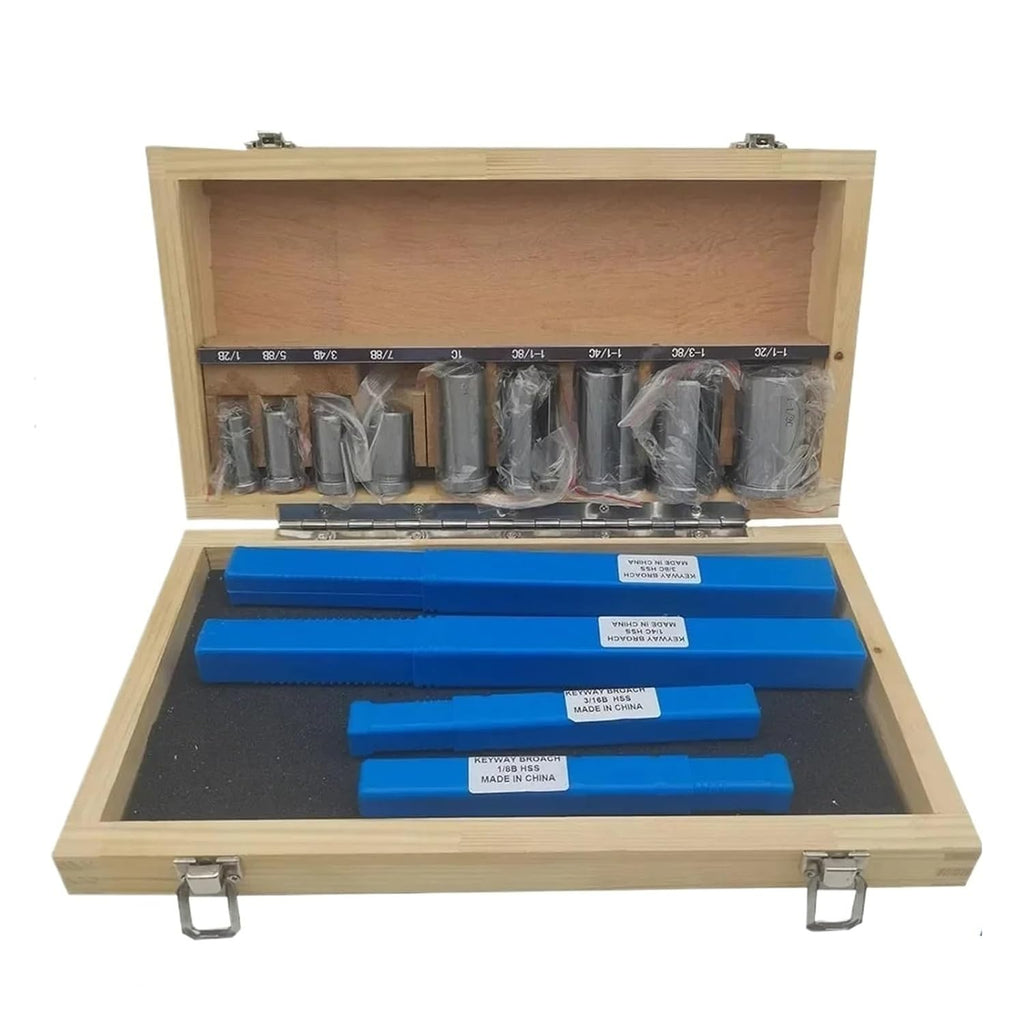

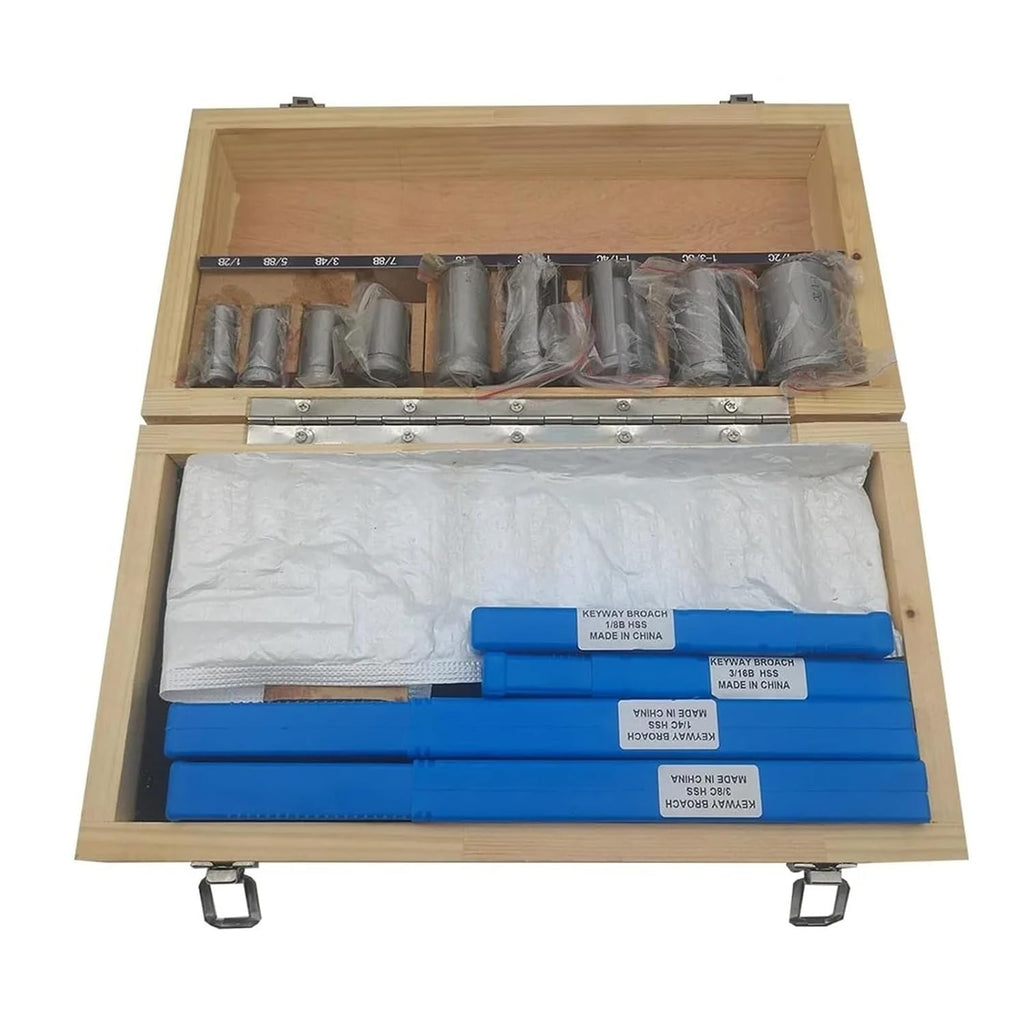

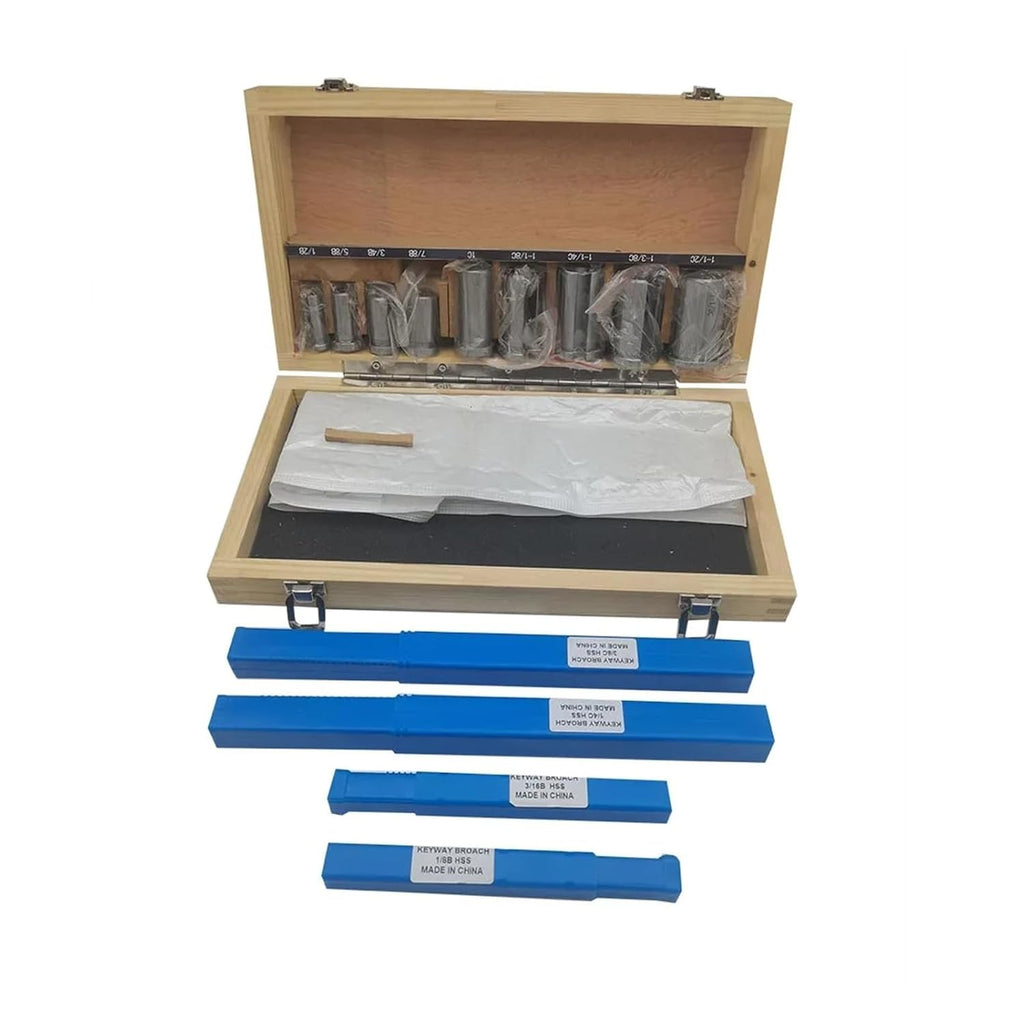

Product Includes:
4pcs * Broaches
9pcs * Bushing Sleeve
5pcs * Shims

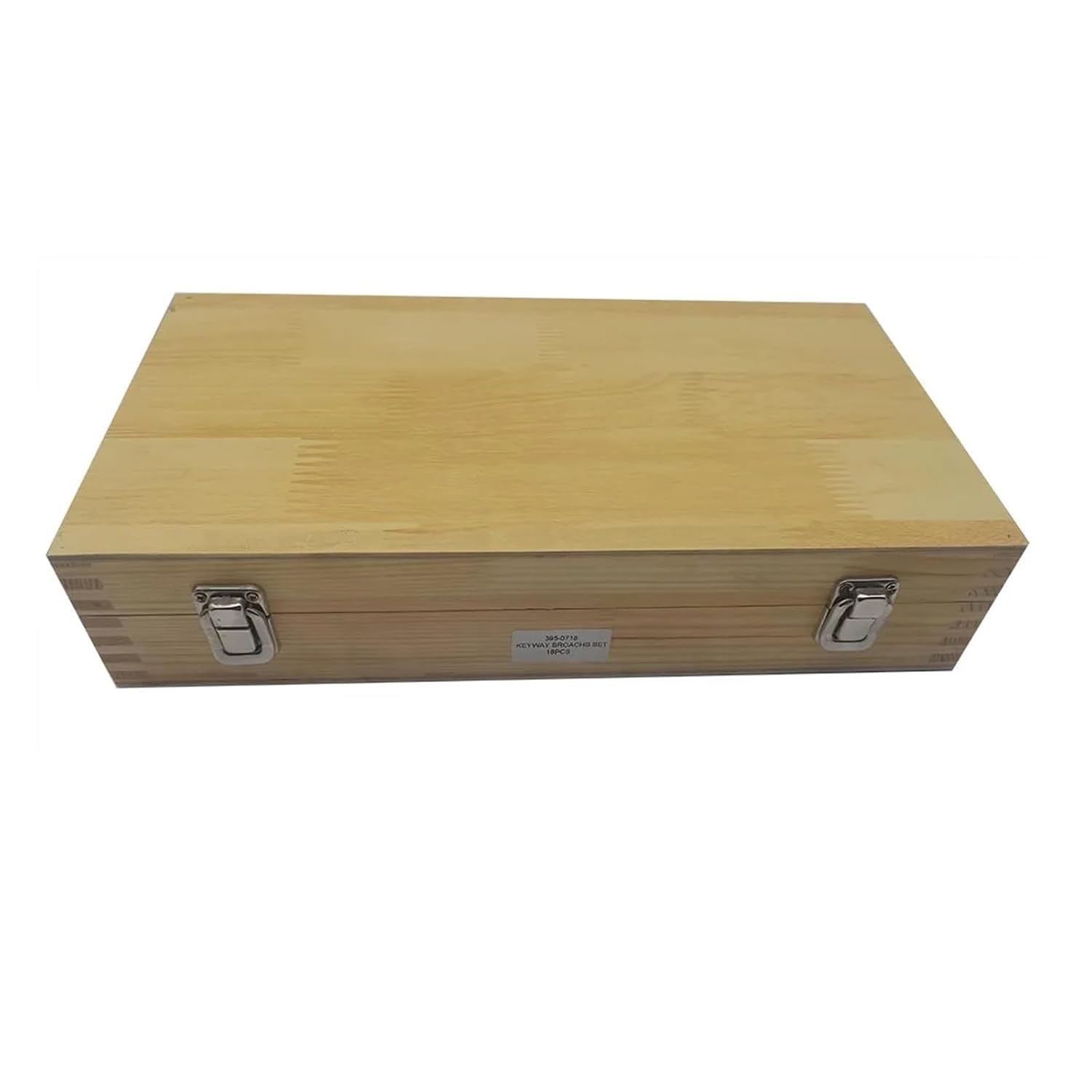

1 * Wood case

Technical Details

• ASIN : ‎B0G4LWD5S5
• Date First Available : ‎December 1, 2025
• Item Weight : ‎9.92 pounds
• Manufacturer : ‎YHYWJHY
• Package Dimensions : ‎0.39 x 0.39 x 0.39 inches
